Ring:bit - Assembly Guide

In this brief two-part series of tutorials, we will be using the Python programming language to instruct a robot car, the Elecfreaks Ring:bit car (v2), to perform a range of tasks including basic movements, line tracking, and light & object detection. In this first tutorial, we will provide instructions detailing how to assemble the Ring:bit car.

1. Hardware Requirements

You will require the following hardware components and tools to build our robot car.

1.1. Components
1.2. Accessories

2. Components Overview

The following table provides a brief overview of each of the major hardware components listed above.

Hardware ComponentDescription
Micro:bit v2
VendorBuy
The BBC Micro:bit is a pocket-sized computer that enables budding engineers and developers to learn how software and hardware work together. It has an LED light display, buttons, sensors and numerous input/output (I/O) features that, when programmed (using either Python, JavaScript or via a visual code builder), allow it to interact with the world. It can also be easily extended and used to control other devices such as the Elecfreaks Ring:bit car.
Ring:bit car v2
VendorBuy
The Elecfreaks Ring:bit car is a small DIY smart car that is controlled and driven by the BBC Micro:bit. The Ring:bit car extends the Micro:bit's three GPIO ports (3 pins), allowing different sensors and components to be easily attached to the Micro:bit.
Ring:bit Accessories Kit
Buy
The accessories kit includes dedicated modules designed for the Ring:bit car. The tracking module enables the detection of edges and black lines. The light bar module delivers full-colour LEDs. And the Sonar:bit module enables obstacle detection and avoidance.

3. Assembly Instructions

A video providing detailed instructions to assemble the Ring:bit car (v2) and optional add-on modules is provided below.

You can also follow the ordered subsections below to assemble the Ring:bit car and to attach the tracking and Sonar:bit extension modules respectively.

3.1. Components List

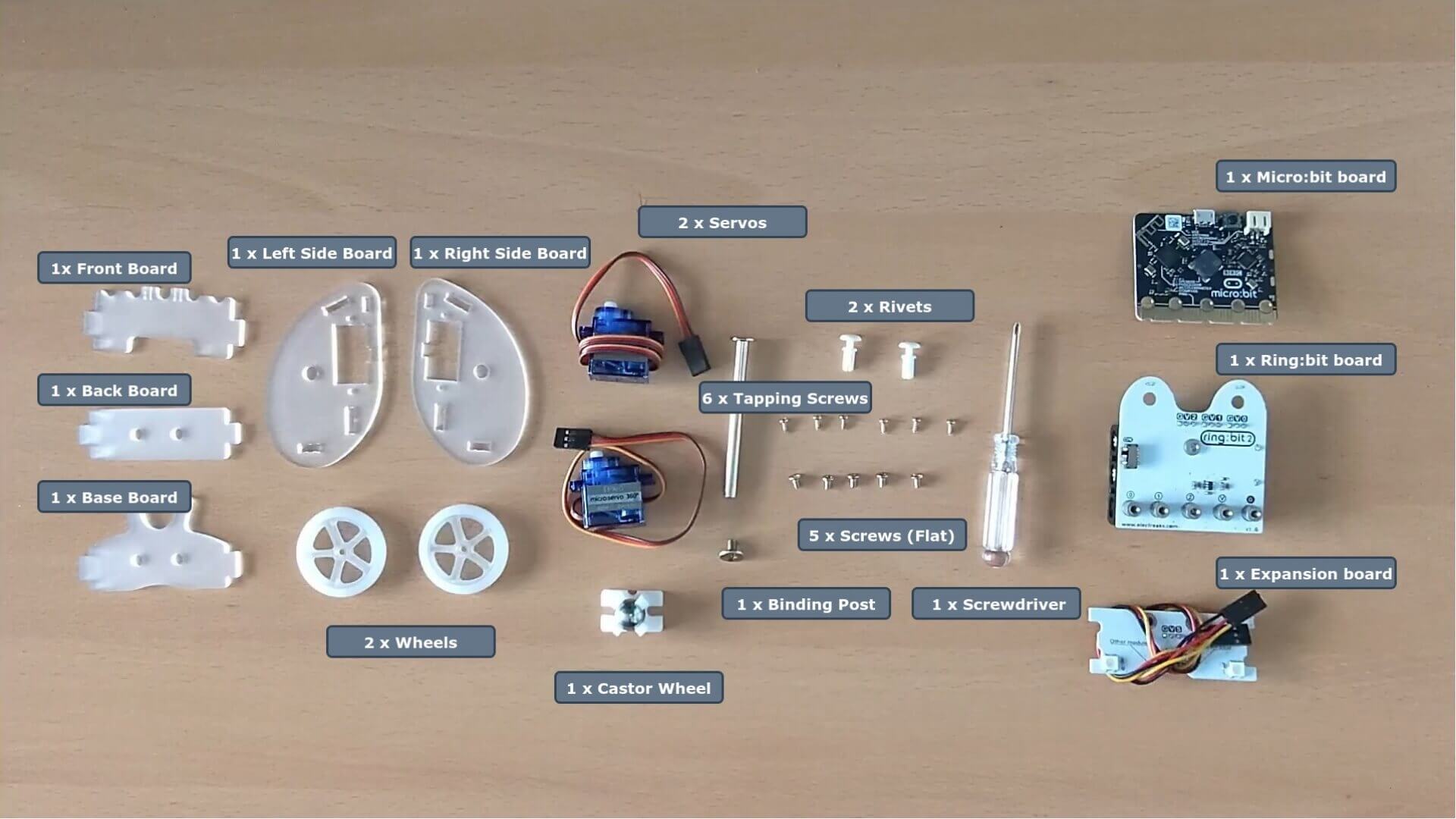

Ring:bit car components
Ring:bit car (v2) components

Check that you have the following components, in the correct quantity, by laying them out on a table.

ComponentQuantity
Micro:bit v21
Ring:bit car v2 Board1
Front Board1
Back Board1
Base Board1
Side Board2
Expansion Board1
Wheel2
Binding Post1
360° Servo2
Castor Wheel1
Screw (Flat)5
Tapping Screw5
Rivet2
Screwdriver1
AAA 1.5V Alkaline battery3
USB micro-B compatible data transfer USB cable1
3.2. Servos and Wheels

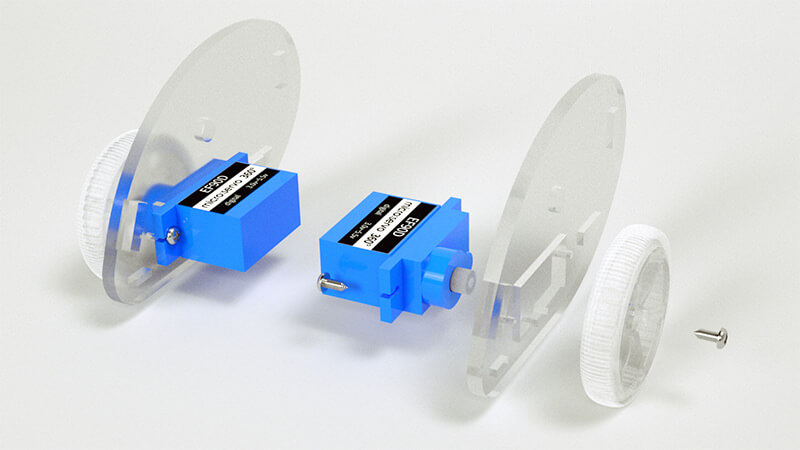

Servos and wheels
Fix the servos and wheels to the side boards (image by Elecfreaks)
  1. Place one of the servos into the pre-cut hole of one of the side boards, ensuring that the jump wires face the smaller end of the side board (as opposed to the larger end).
  2. Secure the servo to the side board using 2 x tapping screws.
  3. Gently slide a wheel onto the servo and use 1 x tapping screw to secure it into place.
  4. Repeat steps 1 - 4 for the other servo and side board.
3.3. Base Board

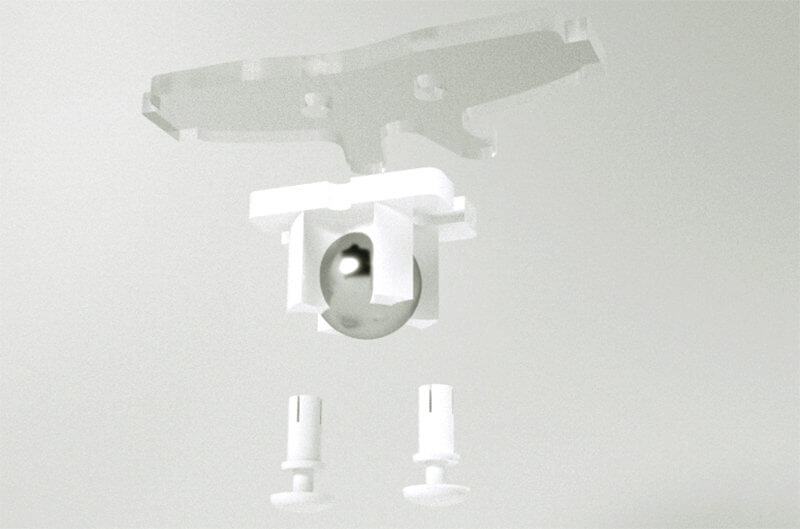

Base board and castor wheel
Fix the castor wheel to the base board (image by Elecfreaks)
  1. Locate the castor wheel and base board.
  2. Secure the castor wheel to the base board using the 2 x rivets.
3.4. Car Chassis

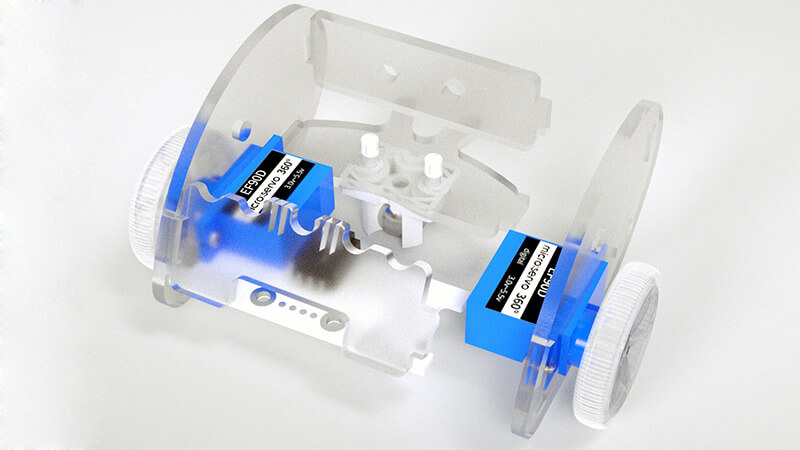

Car chassis
Connect all the boards together (image by Elecfreaks)
  1. Connect the back board, the base board (that is attached to the castor wheel), the front board and the special expansion board to the left side board (that is attached to the servo and wheel) using the pre-cut holes.
  2. Connect the same boards to the right side board in order to form the chassis (or body) of our robot car.
3.5. Binding Post

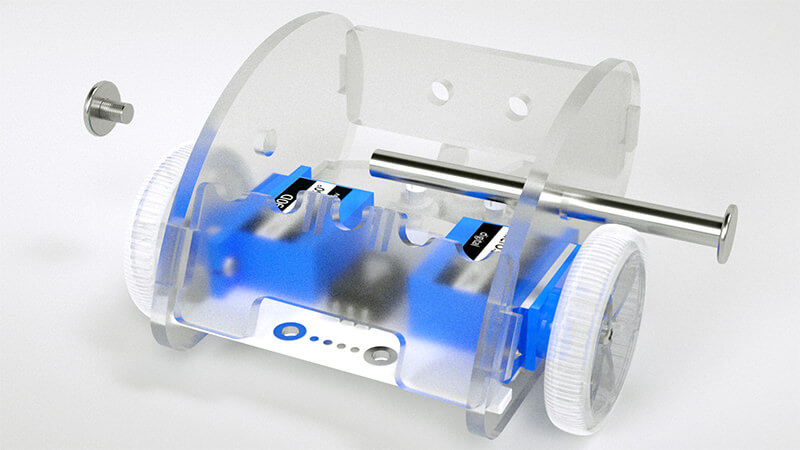

Binding post
Attach the binding post (image by Elecfreaks)
  1. Unscrew the screw from the end of the binding post.
  2. Push the binding post through the pre-cut round hole on one of the side boards and into the opposite side board.
  3. Re-screw the screw into the end of the binding post in order to secure it into position.
3.6. Micro:bit Controller

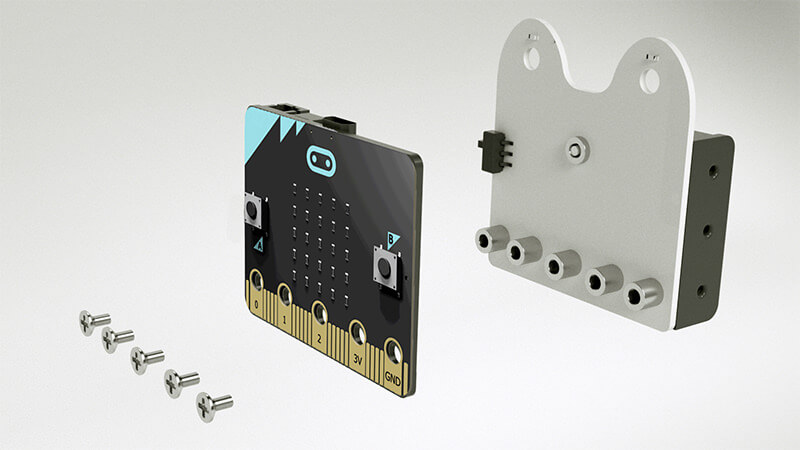

Micro:bit controller
Attach the Micro:bit to the Ring:bit (image by Elecfreaks)
  1. Place the Micro:bit v2 board on top of the Ring:bit v2 board.
  2. Use the 5 x screws (flat) to secure the Micro:bit v2 board to the Ring:bit v2 board.
3.7. Jump Wires

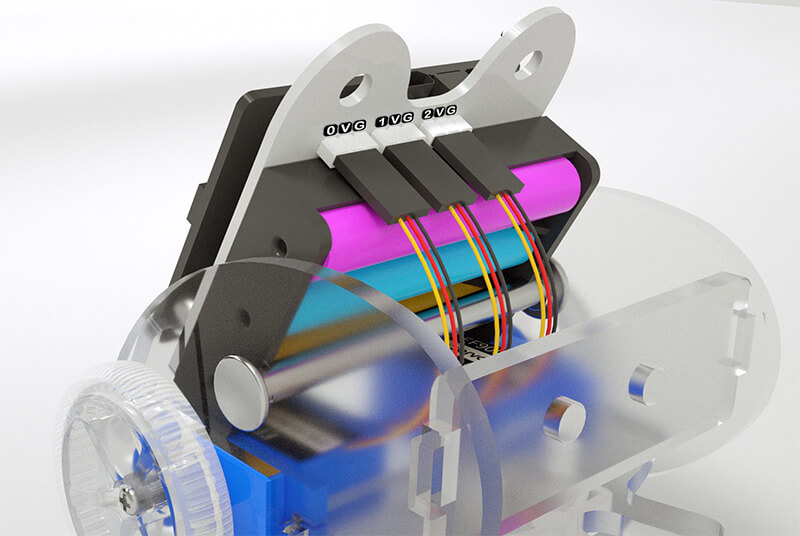

Jump wires
Connect the jump wires (image by Elecfreaks)
  1. Connect the right servo to the Ring:bit v2 board via the pins labelled 2VG, making sure that the ground wire (brown) is connected to the G pin (otherwise the servo and hence wheel will not work).
  2. Connect the left servo to the Ring:bit v2 board via the pins labelled 1VG, making sure that the ground wire (brown) is connected to the G pin (otherwise the servo and hence wheel will not work).
  3. Connect the special expansion board to the Ring:bit v2 board via the pins labelled 0VG, making sure that the ground wire (brown or black) is connected to the G pin (otherwise add-on modules such as the infrared tracking module connected to the special expansion board will not work).
  4. Place the Ring:bit v2 board on to the front board of the car body.
  5. Tidy the wires so that they are contained within the body of the Ring:bit car.
3.8. Base Ring:bit Car

The assembly of the base Ring:bit car v2 unit is now complete!

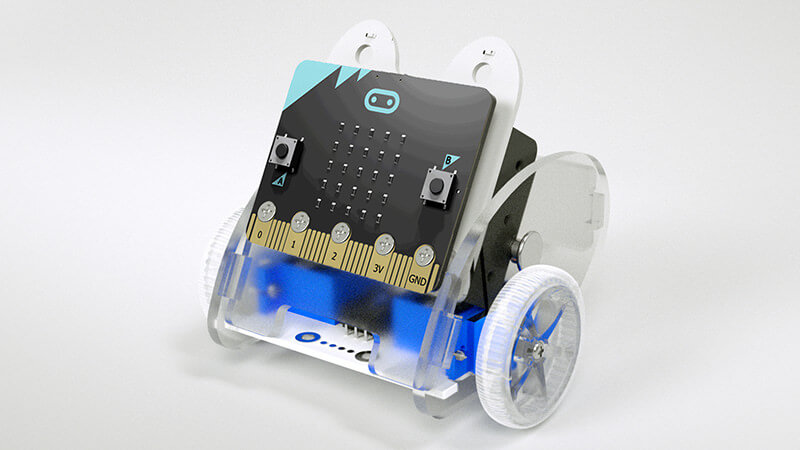

Base of the Ring:bit car
Base Ring:bit car v2 (image by Elecfreaks)
3.9. Tracking Module

The optional tracking module is equipped with two infrared sensors that enables the Ring:bit car to perform edge detection and thus follow a black-lined route.

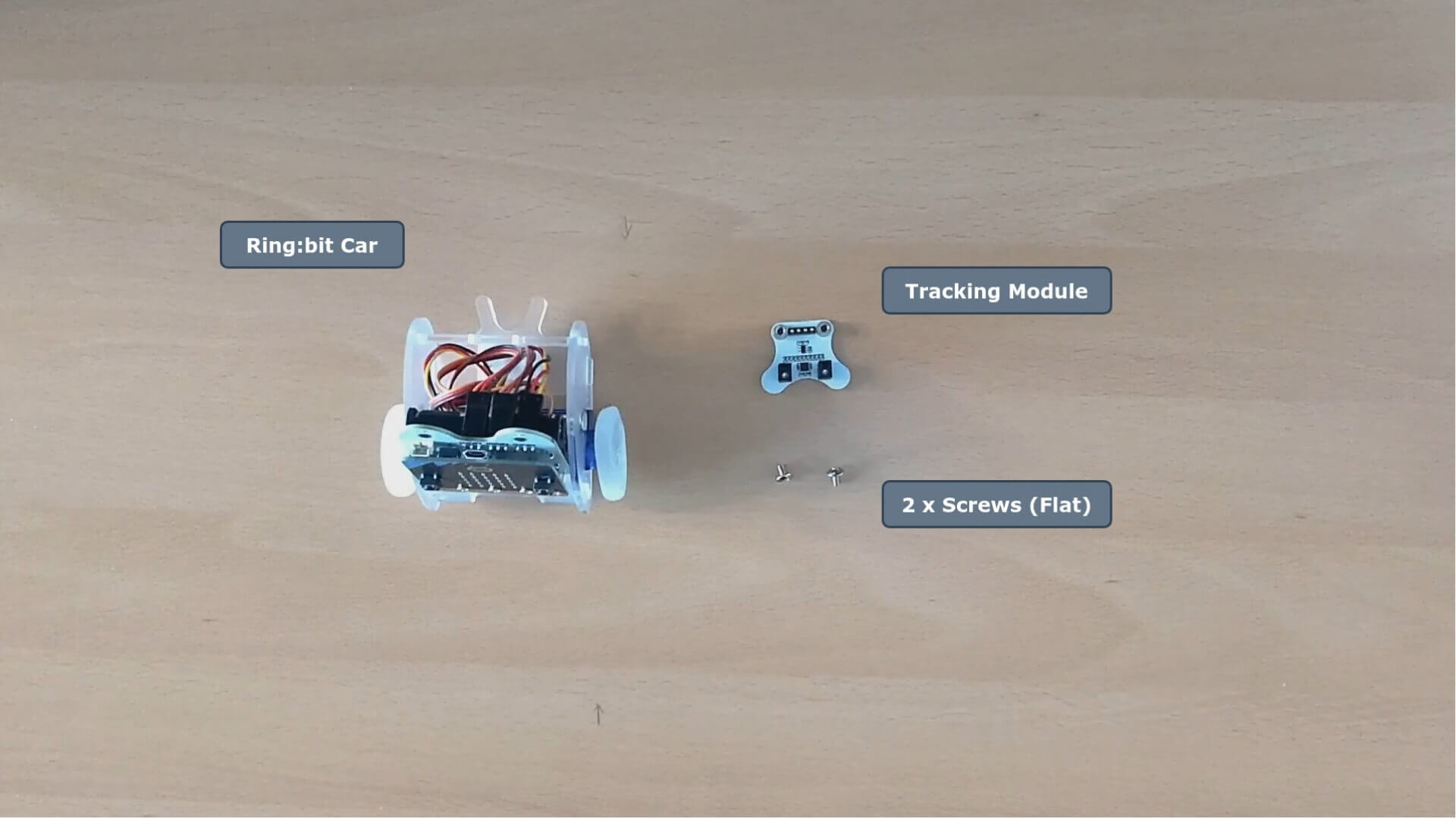

Tracking module
Tracking module components

To install the optional tracking module, please follow the ordered steps below.

  1. Place the tracking module on the special expansion board.
  2. Use the 2 x screws to secure the tracking module to the special expansion board.

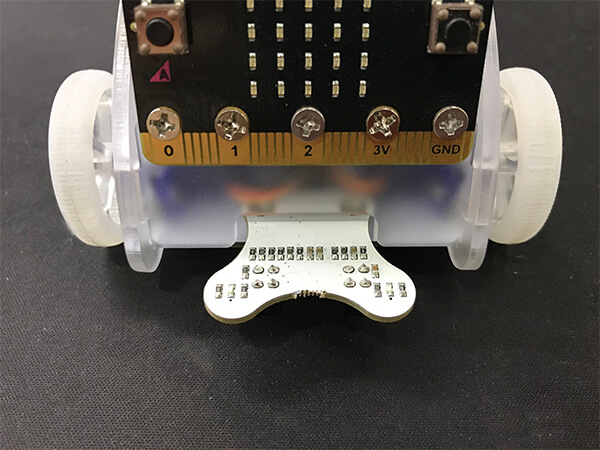

Tracking module assembly
Attach the tracking module to the special expansion board (image by Elecfreaks)
3.10. Sonar:bit Module

The optional Sonar:bit module is an ultrasonic sensor that enables the Ring:bit car to detect, and thus avoid, obstacles.

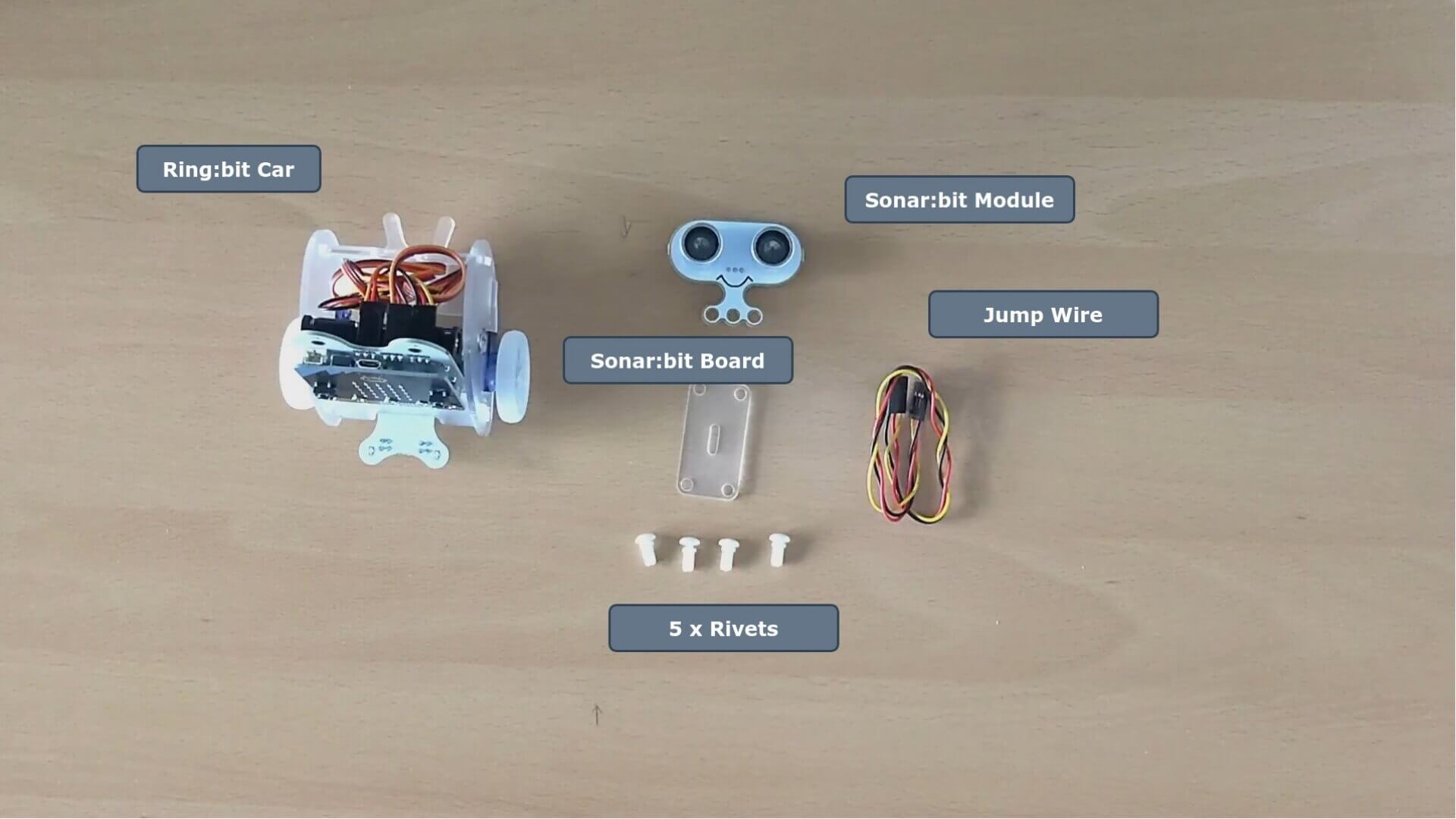

Sonar:bit module
Sonar:bit module components

To install the optional Sonar:bit module, please follow the ordered steps below.

  1. Attach one end of the Sonar:bit board to the back board of the Ring:bit car using 2 x rivets.
  2. Attach the Sonar:bit ultrasonic sensor to the other end of the Sonar:bit board using the further 2 x rivets.
  3. Connect the Sonar:bit module to the Ring:bit v2 board via the pins labelled 0VG, making sure that the ground wire (brown or black) is connected to the G pin (otherwise the ultrasonic Sonar:bit module will not work).

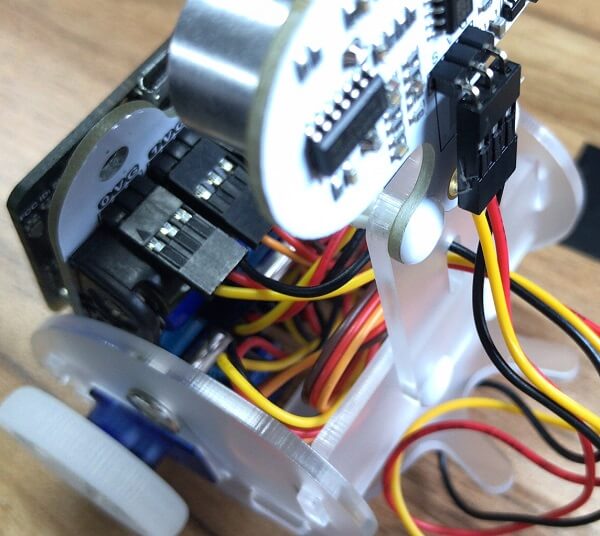

Sonar module assembly
Attach the Sonar:bit module to the Ring:bit board (image by Elecfreaks)
3.11. Extended Ring:bit Car

The assembly of the Ring:bit car v2, extended with the tracking module and the Sonar:bit module, is now complete!

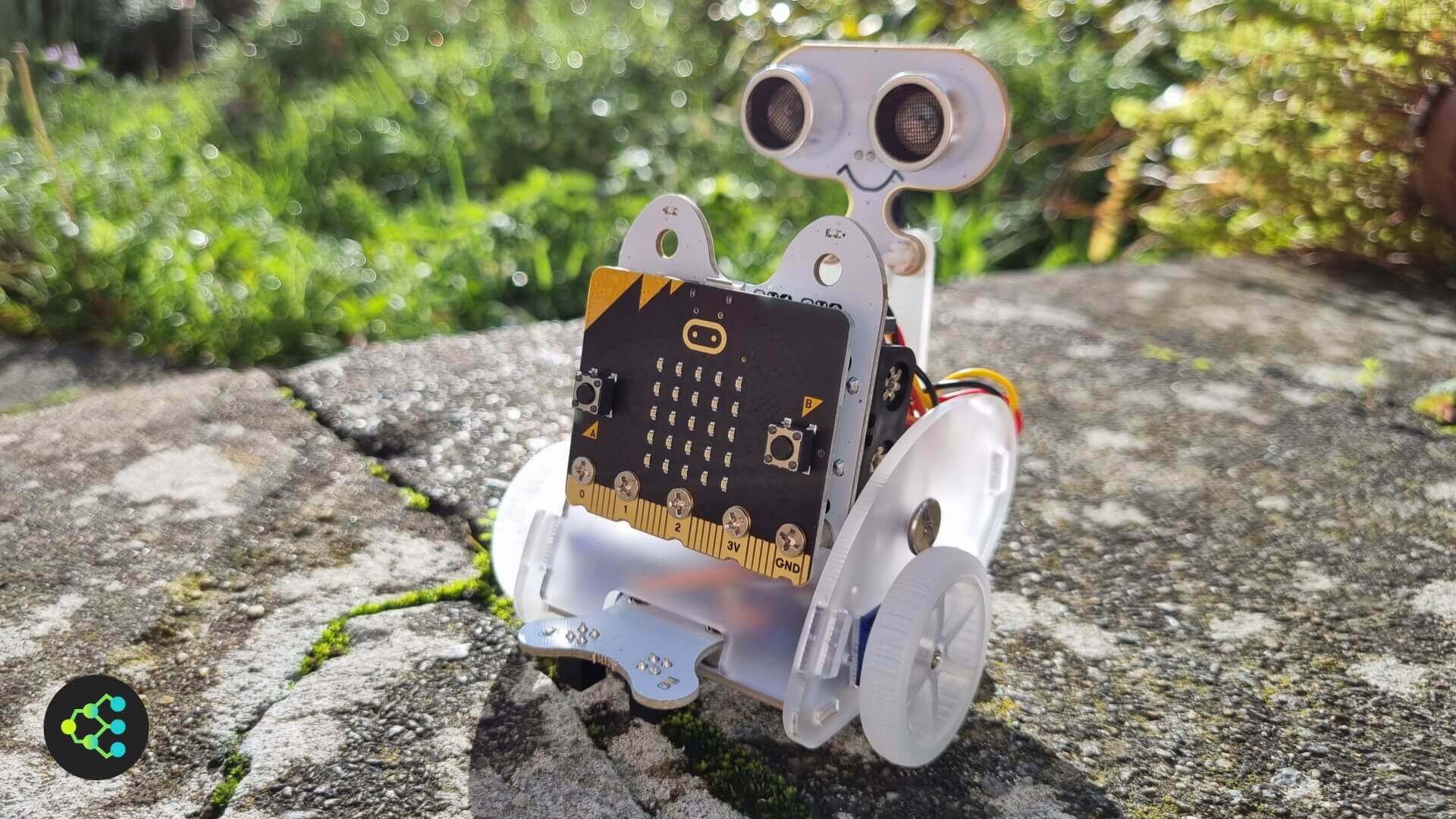

Extended Ring:bit car v2
Extended Ring:bit car (v2)
